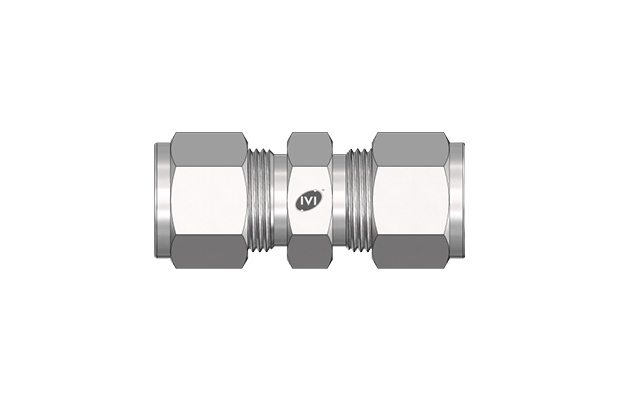

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Union
| Part Number | Dimensions (mm) | ||||
|---|---|---|---|---|---|
| Tube O.D. | L | C | D | W HEX | |
| IVI-1T-U | 1/16 | 0.99 | 0.43 | 0.69 | 5/16 |
| IVI-2T-U | 1/8 | 1.39 | 0.60 | 0.88 | 7/16 |
| IVI-3T-U | 3/16 | 1.48 | 0.64 | 0.95 | 7/16 |
| IVI-4T-U | 1/4 | 1.62 | 0.70 | 1.03 | 1/2 |
| IVI-ST-U | 5/16 | 1.70 | 0.73 | 1.11 | 9/16 |
| IVI-6T-U | 3/8 | 1.77 | 0.76 | 1.19 | 5/8 |
| IVI-8T-U | 1/2 | 2.02 | 0.87 | 1.22 | 13/16 |
| IVI-10T-U | 5/8 | 2.05 | 0.87 | 1.25 | 15/16 |
| IVI-12T-U | 3/4 | 2.11 | 0.87 | 1.31 | 1-1/16 |
| IVI-14T-U | 7/8 | 2.18 | 0.87 | 1.38 | 1-3/16 |
| IVI-16T-U | 1 | 2.57 | 1.05 | 1.59 | 1-3/8 |
