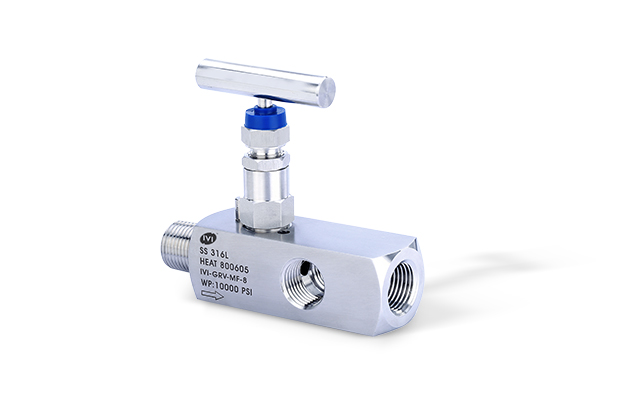

Ivi Manifold

Designed for connecting impulse lines & transmitters.
Bar stock construction
Standard Working Pressure 6000 PSI with PTFE packing. Grafoil offered for higher temperatures.
Soft Seat Valves available on request.
Standard NPT End Connections. BSP / BSPT / ANPT Threads available on Request.
Heat Code traceability.
NACE MR-0- 175 Compliant materials available on request.
All Components are Ultrasonically cleaned prior to assembly.
Pneumatic seat test is performed at 1000 PSI. Medium � Nitrogen gas.
Hydrostatic seat test is performed at 1.1 times the working pressure.
Hydrostatic shell test is performed at 1.5 times the working pressure
All the Valves are 100% Factory Tested.
3.1 Certificates furnished. 3.2 certificates available on request.
Vent Plugs or Bleed Valves provided on request.
Available in SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel and Monel
