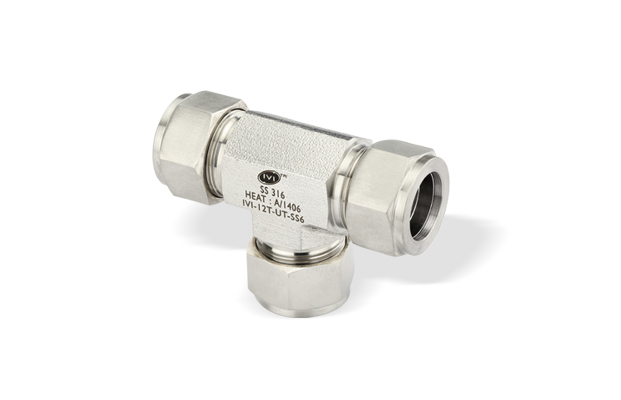

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Union Tee - Metric Range
| Part Number | Dimensions (mm) | |||
|---|---|---|---|---|
| Tube O.D. | L | L1 | W HEX(In) | |
| IVI-2MT-UT | 2 | 22.3 | 15.7 | 3/8 |
| IVI-3MT-UT | 3 | 22.3 | 15.7 | 3/8 |
| IVI-4MT-UT | 4 | 25.4 | 18.8 | 1/2 |
| IVI-6MT-UT | 6 | 27.0 | 19.6 | 1/2 |
| IVI-8MT-UT | 8 | 29.9 | 22.4 | 5/8 |
| IVI-1OMT-UT | 10 | 31.5 | 23.9 | 11/16 |
| IVI-12MT-UT | 12 | 36.0 | 25.9 | 13/16 |
| IVI-16MT-UT | 16 | 38.8 | 28.7 | 1 |
| IVI-18MT-UT | 18 | 38.8 | 29.7 | 1-1/16 |
| IVI-20MT-UT | 20 | 44.6 | 34.5 | 1-3/8 |
| IVI-22MT-UT | 22 | 44.6 | 34.5 | 1-3/8 |
| IVI-25MT-UT | 25 | 49.1 | 36.8 | 1-3/8 |
