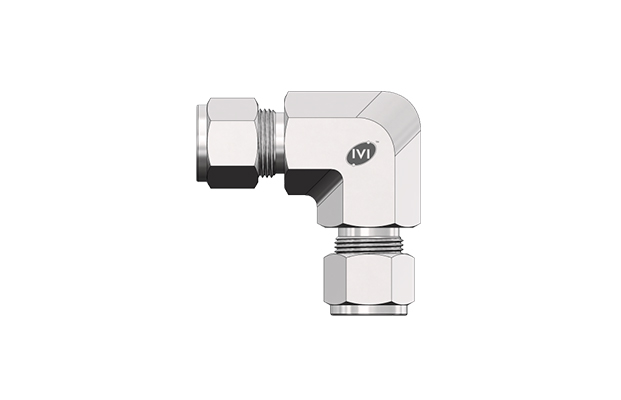

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Union Elbow
| Part Number | Dimensions (mm) | |||
|---|---|---|---|---|
| Tube O.D. | L | L1 | W HEX | |
| IVI-1T-UE | 1/16 | .70 | .55 | 3/8 |
| IVI-2T-UE | 1/8 | .88 | .62 | 3/8 |
| IVI-3T-UE | 3/16 | 1.00 | .74 | 1/2 |
| IVI-4T-UE | 1/4 | 1.06 | .77 | 1/2 |
| IVI-5T-UE | 5/16 | 1.13 | .84 | 9/16 |
| IVI-6T-UE | 3/8 | 1.20 | .91 | 5/8 |
| IVI-8T-UE | 1/2 | 1.42 | 1.02 | 13/16 |
| IVI-10T-UE | 5/8 | 1.50 | 1.10 | 15/16 |
| IVI-12T-UE | 3/4 | 1.57 | 1.17 | 1-1/16 |
| IVI-14T-UE | 7/8 | 1.76 | 1.36 | 1-3/8 |
| IVI-16T-UE | 1 | 1.93 | 1.45 | 1-3/8 |
