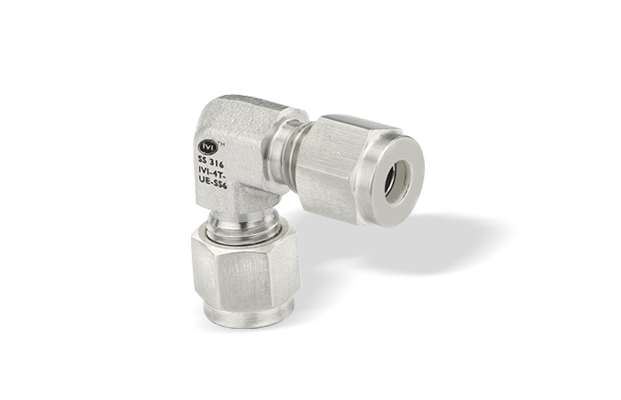

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Union Elbow - Metric Range
| Part Number | Dimensions (mm) | |||
|---|---|---|---|---|
| Tube O.D. | L | L1 | W HEX | |
| IVI-3MT-UE | 3 | 22.3 | 15.7 | 3/8 |
| IVI-4MT-UE | 4 | 25.4 | 18.8 | 1/2 |
| IVI-6MT-UE | 6 | 27.0 | 19.6 | 1/2 |
| IVI-8MT-UE | 8 | 28.8 | 21.3 | 9/16 |
| IVI-1OMT-UE | 10 | 31.5 | 23.9 | 11/16 |
| IVI-12MT-UE | 12 | 36.0 | 25.9 | 13/16 |
| IVI-16MT-UE | 16 | 38.0 | 27.9 | 15/16 |
| IVI-18MT-UE | 18 | 39.8 | 29.7 | 1-1/16 |
| IVI-20MT-UE | 20 | 44.6 | 34.5 | 1-3/8 |
| IVI-22MT-UE | 22 | 44.6 | 34.5 | 1-3/8 |
| IVI-25MT-UE | 25 | 49.1 | 36.8 | 1-3/8 |
