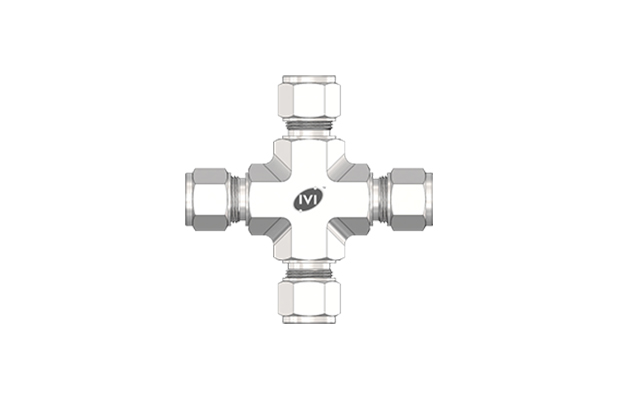

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Union Cross - Metric Range
| Part Number | Dimensions (mm) | |||
|---|---|---|---|---|
| Tube O.D. | L | L1 | W HEX(In) | |
| IVI-3MT-UC | 3 | 22.3 | 15.7 | 7/16 |
| IVI-4MT-UC | 4 | 25.4 | 18.8 | 1/2 |
| IVI-6MT-UC | 6 | 27.0 | 19.6 | 1/2 |
| IVI-8MT-UC | 8 | 29.9 | 22.4 | 5/8 |
| IVI-1OMT-UC | 10 | 33.5 | 25.9 | 13/16 |
| IVI-12MT-UC | 12 | 36.0 | 25.9 | 13/16 |
| IVI-16MT-UC | 16 | 37.0 | 26.9 | 15/16 |
| IVI-18MT-UC | 18 | 38.3 | 28.2 | 1-1/16 |
