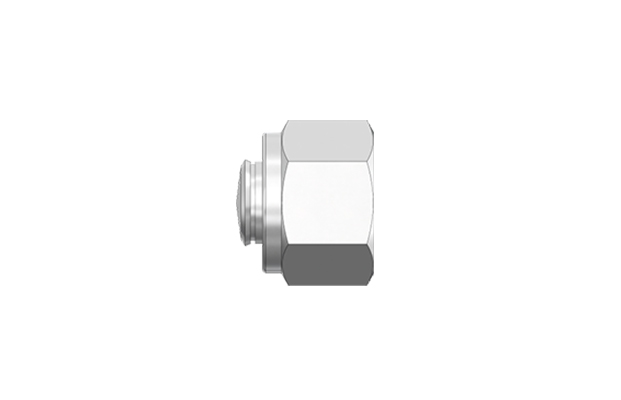

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Tube Plug - Metric Range
| Part Number | Dimensions (mm) | |||
|---|---|---|---|---|
| Tube O.D. | Thread | L | W HEX | |
| IVI-2MT-TP | 2 | 5/16-20 | 11.9 | 12.0 |
| IVI-3MT-TP | 3 | 5/16-20 | 11.9 | 12.0 |
| IVI-4MT-TP | 4 | 3/8-20 | 11.9 | 12.0 |
| IVI-6MT-TP | 6 | 7/16-20 | 12.7 | 14.0 |
| IVI-8MT-TP | 8 | 1/2-20 | 13.5 | 16.0 |
| IVI-1OMT-TP | 10 | 5/8-20 | 15.1 | 19.0 |
| IVI-12MT-TP | 12 | 3/4-20 | 17.5 | 22.0 |
| IVI-14MT-TP | 14 | 7/8-20 | 17.5 | 25.0 |
| IVI-15MT-TP | 15 | 7/8-20 | 17.5 | 25.0 |
| IVI-16MT-TP | 16 | 7/8-20 | 17.5 | 25.0 |
| IVI-18MT-TP | 18 | 1-20 | 17.5 | 30.0 |
| IVI-20MT-TP | 20 | 1-1/8-20 | 17.5 | 32.0 |
| IVI-22MT-TP | 22 | 1-1/8-20 | 17.5 | 32.0 |
| IVI-25MT-TP | 25 | 1-5/16-20 | 20.6 | 38.0 |
