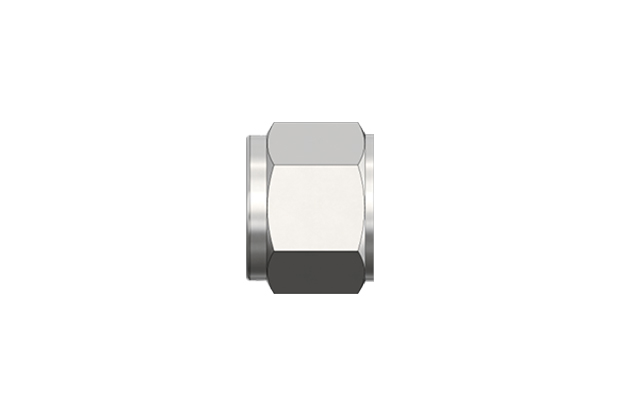

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Tube Nut - Metric Range
| Part Number | Dimensions (mm) | ||
|---|---|---|---|
| Tube O.D. | L | W HEX | |
| IVI-2MT-N | 2 | 11.9 | 12.0 |
| IVI-3MT-N | 3 | 11.9 | 12.0 |
| IVI-4MT-N | 4 | 11.9 | 12.0 |
| IVI-6MT-N | 6 | 12.7 | 14.0 |
| IVI-8MT-N | 8 | 13.5 | 16.0 |
| IVI-10MT-N | 10 | 15.1 | 19.0 |
| IVI-12MT-N | 12 | 17.5 | 22.0 |
| IVI-14MT-N | 14 | 17.5 | 25.0 |
| IVI-15MT-N | 15 | 17.5 | 25.0 |
| IVI-16MT-N | 16 | 17.5 | 25.0 |
| IVI-18MT-N | 18 | 17.5 | 30.0 |
| IVI-20MT-N | 20 | 17.5 | 32.0 |
| IVI-20MT-N | 22 | 17.5 | 32.0 |
| IVI-25MT-N | 25 | 20.6 | 38.0 |
