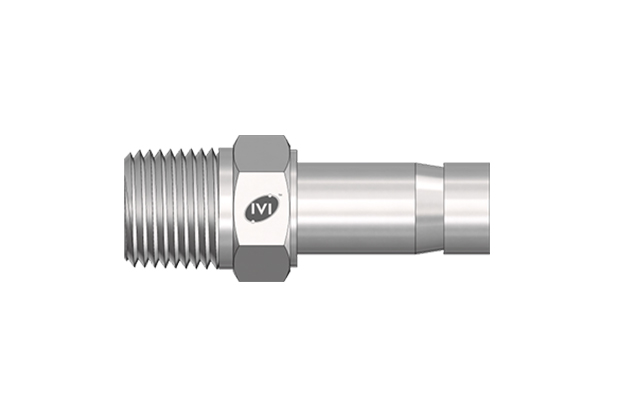

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Tube End Male Adapter - Metric Range : NPT Thread
| Part Number | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| P Tube O.D. | NPT thread | L | K | R | W HEX | ||
| IVI-3MT-MA-2N | 3 | 1/8 | 29.4 | 13.5 | 9.7 | 12.0 | |
| IVI-4MT-MA-2N | 4 | 1/8 | 29.4 | 14.3 | 9.7 | 12.0 | |
| IVI-6MT-MA-2N | 6 | 1/8 | 31.0 | 15.9 | 9.7 | 12.0 | |
| IVI-6MT-MA-4N | 6 | 1/4 | 35.7 | 16.1 | 14.2 | 14.0 | |
| IVI-6MT-MA-6N | 6 | 3/8 | 36.5 | 16.1 | 14.2 | 18.0 | |
| IVI-6MT-MA-8N | 6 | 1/2 | 42.1 | 16.7 | 19.1 | 22.0 | |
| IVI-8MT-MA-4N | 8 | 1/4 | 37.3 | 16.7 | 14.2 | 14.0 | |
| IVI-8MT-MA-6N | 8 | 3/8 | 38.1 | 17.5 | 14.2 | 12.0 | |
| IVI-1OMT-MA-4N | 10 | 1/4 | 38.1 | 17.5 | 14.2 | 14.0 | |
| IVI-1OMT-MA-6N | 10 | 3/8 | 43.7 | 17.5 | 14.2 | 18.0 | |
| IVI-10MT-MA-8N | 10 | 1/2 | 44.5 | 23.0 | 19.1 | 22.0 | |
| IVI-12MT-MA-4N | 12 | 1/4 | 43.7 | 23.0 | 14.2 | 14.0 | |
| IVI-12MT-MA-6N | 12 | 3/8 | 44.5 | 23.0 | 14.2 | 27.0 | |
| IVI-12MT-MA-8N | 12 | 1/2 | 49.2 | 24.6 | 19.1 | 22.0 | |
| IVI-16MT-MA-8N | 16 | 1/2 | 50.8 | 24.6 | 19.1 | 22.0 | |
| IVI-16MT-MA-12N | 16 | 3/4 | 51.6 | 24.6 | 19.1 | 27.0 | |
| IVI-18MT-MA-8N | 18 | 1/2 | 50.8 | 24.6 | 19.1 | 22.0 | |
| IVI-18MT-MA-12N | 18 | 3/4 | 51.6 | 24.6 | 19.1 | 27.0 | |
| IVI-20MT-MA-8N | 20 | 1/2 | 51.8 | 25.6 | 19.1 | 22.0 | |
| IVI-20MT-MA-12N | 20 | 3/4 | 52.4 | 25.4 | 19.1 | 27.0 | |
| IVI-25MT-MA-16N | 25 | 1 | 65.9 | 31.8 | 23.9 | 35.0 | |
