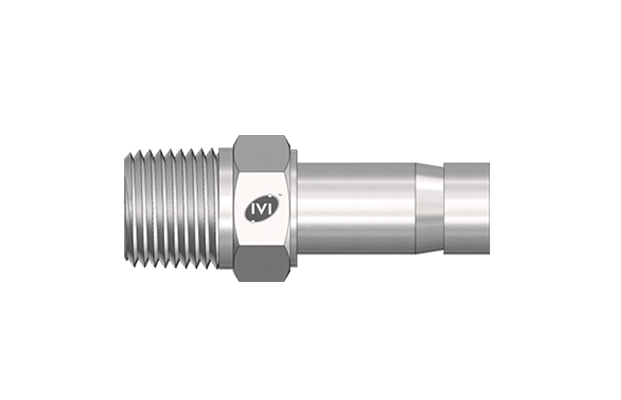

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Tube End Male Adapter - Metric Range : ISO Tapered Thread
| Part Number | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Tube O.D. | BSPT thread | L | K | R | W HEX | ||
| IVI-3MT-MA-2GT | 3 | 1/8 | 29.4 | 13.5 | 9.7 | 12.0 | |
| IVI-4MT-MA-2GT | 4 | 1/8 | 29.4 | 14.3 | 9.7 | 12.0 | |
| IVI-6MT-MA-2GT | 6 | 1/8 | 31.0 | 15.9 | 9.7 | 12.0 | |
| IVI-6MT-MA-4GT | 6 | 1/4 | 35.7 | 15.9 | 14.2 | 14.0 | |
| IVI-8MT-MA-AGT | B | 1/4 | 37.3 | 16.7 | 14,2 | 14.0 | |
| IVI-8MT-MA-6GT | 8 | 3/8 | 38.3 | 16.8 | 14.2 | 18.0 | |
| IVI-10MT-MA-4GT | 10 | 1/4 | 38,1 | 17.5 | 14,2 | 14.0 | |
| IVI-10MT-MA-6GT | 10 | 3/8 | 38.1 | 17.5 | 14.2 | 18.0 | |
| IVI-10MT-MA-8GT | 10 | 1/2 | 44.5 | 17.5 | 19.1 | 22.0 | |
| IVI-12MT-MA-2GT | 12 | 1/4 | 43.7 | 23.0 | 14.2 | 14.0 | |
| IVI-12MT-MA-6GT | 12 | 3/8 | 44.5 | 23.0 | 14,2 | 18.0 | |
| IVI-12MT-MA-8GT | 12 | 1/2 | 49.2 | 23.0 | 19.1 | 22.0 | |
| IVI-16MT-MA-2GT | 16 | 1/2 | 50.8 | 24.6 | 19.1 | 22.0 | |
| IVI-18MT-MA-12GT | 18 | 3/4 | 51.6 | 24.6 | 19.1 | 27.0 | |
| IVI-20MT-MA-2GT | 20 | 1/8 | 52.4 | 25.4 | 19.1 | 27.0 | |
| IVI-25MT-MA-16GT | 25 | 1 | 65.9 | 31.8 | 23.9 | 35.0 | |
