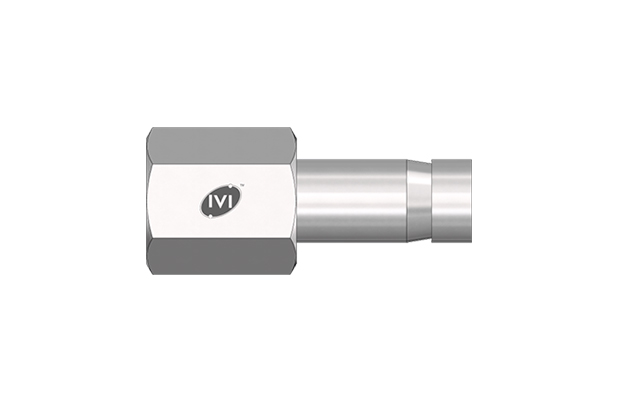

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Tube End Dimensional Data
| Part Number | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| P Tube O.D. | NPT Pipe thread | L | R | K | W HEX | ||
| IVI-2T-MA-2N | 1/8 | 1/8 | 1.16 | 0.38 | 0.54 | 7/16 | |
| IVI-3T-MA-2N | 3/16 | 1/8 | 1.20 | 0.38 | 0.58 | 7/16 | |
| IVI-4T-MA-2N | 1/4 | 1/8 | 1.25 | 0.38 | 0.63 | 7/16 | |
| IVI-4T-MA-6N | 1/4 | 3/8 | 1.49 | 0.56 | 0.63 | 11/16 | |
| IVI-5T-MA-2N | 5/16 | 1/8 | 1.29 | 0.38 | 0.66 | 7/16 | |
| IVI-5T-MA-6N | 5/16 | 3/8 | 1.53 | 0.56 | 0.66 | 11/16 | |
| IVI-6T-MA-2N | 3/8 | 1/8 | 1.32 | 0.38 | 0.69 | 7/16 | |
| IVI-6T-MA-6N | 3/8 | 3/8 | 1.56 | 0.56 | 0.69 | 11/16 | |
| IVI-8T-MA-4N | 1/2 | 1/4 | 1.75 | 0.56 | 0.91 | 9/16 | |
| IVI-8T-MA-8N | 1/2 | 1/2 | 2.00 | 0.75 | 0.91 | 7/8 | |
| IVI-12T-MA-8N | 3/4 | 1/2 | 2.06 | 0.75 | 0.97 | 7/8 | |
| IVI-12T-MA-16N | 3/4 | 1 | 2.41 | 0.94 | 0.97 | 1-3/8 | |
| IVI-16T-MA-16N | 1 | 1 | 2.68 | 0.94 | 1.22 | 1-3/8 | |
