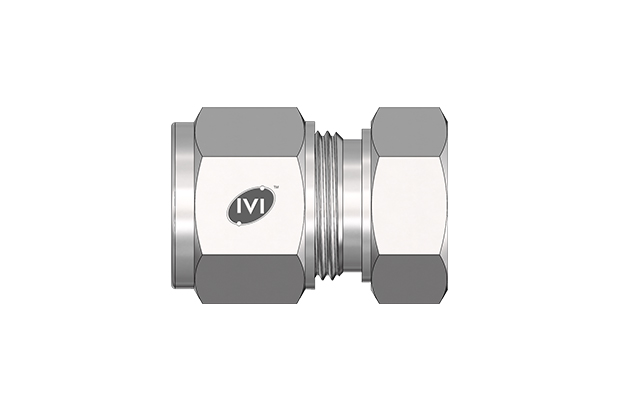

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Tube Cap - Metric Range
| Part Number | Dimensions (mm) | |||
|---|---|---|---|---|
| Tube O.D. | L | C | W HEX | |
| IVI-2MT-TC | 2 | 13.5 | 15.3 | 12.0 |
| IVI-3MT-TC | 3 | 13.5 | 15.3 | 12.0 |
| IVI-4MT-TC | 4 | 14.3 | 16.1 | 12.0 |
| IVI-6MT-TC | 6 | 15.9 | 17.7 | 14.0 |
| IVI-8MT-TC | 8 | 17.1 | 18.6 | 15.0 |
| IVI-1OMT-TC | 10 | 19.1 | 19.5 | 18.0 |
| IVI-12MT-TC | 12 | 19.1 | 22.0 | 22.0 |
| IVI-14MT-TC | 14 | 19.8 | 22.0 | 24.0 |
| IVI-15MT-TC | 15 | 19.8 | 22.0 | 24.0 |
| IVI-16MT-TC | 16 | 19.8 | 22.0 | 24.0 |
| IVI-18MT-TC | 18 | 21.3 | 22.0 | 27.0 |
| IVI-20MT-TC | 20 | 23.9 | 22.0 | 30.0 |
| IVI-22MT-TC | 22 | 23.9 | 22.0 | 30.0 |
| IVI-25MT-TC | 25 | 26.0 | 26.5 | 35.0 |
