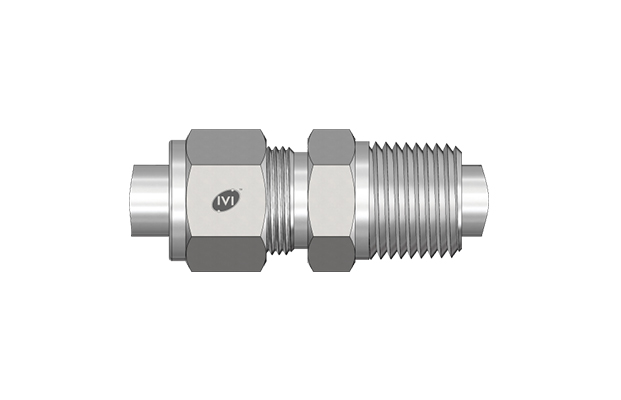

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Thermocouple Connector
| Part Number | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Tube O.D. | NPT Pipe thread | L | C | D | R | W HEX | |
| IVI-1TC-1N | 1/16 | 1/16 | 0.93 | .43 | 0.78 | .38 | 5/16 |
| IVI-1TC-2N | 1/16 | 1/8 | 1.03 | .43 | 0.88 | .38 | 7/16 |
| IVI-1TC-4N | 1/16 | 1/4 | 1.23 | .43 | 1.08 | .56 | 9/16 |
| IVI-2TC-1N | 1/8 | 1/16 | 1.17 | .60 | 0.91 | .38 | 3/8 |
| IVI-2TC-2N | 1/8 | 1/8 | 1.20 | .60 | 0.94 | .38 | 7/16 |
| IVI-2TC-4N | 1/8 | 1/4 | 1.40 | .60 | 1.14 | .56 | 9/16 |
| IVI-3TC-2N | 3/16 | 1/8 | 1.23 | 64 | 0.97 | .38 | 7/16 |
| IVI-3TC-4N | 3/16 | 1/4 | 1.43 | .64 | 1.17 | .56 | 9/16 |
| IVI-4TC-2N | 1/4 | 1/8 | 1.29 | .70 | 1.00 | .38 | 1/2 |
| IVI-4TC-4N | 1/4 | 1/4 | 1.49 | .70 | 1.20 | .56 | 9/16 |
| IVI-4TC-6N | 1/4 | 3/8 | 1.60 | .70 | 1.22 | .56 | 11/16 |
| IVI-4TC-8N | 1/4 | 1/2 | 1.87 | .70 | 1.47 | 75 | 7/8 |
| IVI-5TC-4N | 5/16 | 1/4 | 1.52 | .73 | 1.22 | .56 | 9/16 |
| IVI-6TC-4N | 3/8 | 1/4 | 1.57 | .76 | 1.28 | .56 | 5/8 |
| IVI-6TC-6N | 3/8 | 3/8 | 1.57 | .76 | 1.28 | .56 | 11/16 |
| IVI-6TC-8N | 3/8 | 1/2 | 1.82 | .76 | 1.53 | .75 | 7/8 |
| IVI-6TC-12N | 3/8 | 3/4 | 1.88 | .76 | 1.59 | .75 | 1-1/16 |
| IVI-8TC-8N | 1/2 | 1/2 | 1.93 | .87 | 1.53 | .76 | 7/8 |
| IVI-8TC-12N | 1/2 | 3/4 | 1.99 | 87 | 1.59 | .75 | 1-1/16 |
| IVI-10TC-12N | 5/8 | 3/4 | 1.99 | .87 | 1.59 | .75 | 1-1/16 |
| IVI-12TC-12N | 3/4 | 3/4 | 1.99 | .87 | 1.59 | .75 | 1-1/16 |
| IVI-16TC-16N | 1 | 1 | 2.46 | 1.05 | 1.97 | .94 | 1-3/8 |
