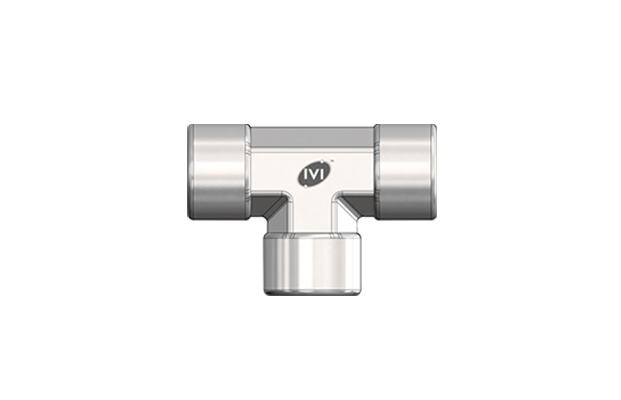

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Tees Female Npt
Part Number | Pipe Size (in) | Dimensions (mm) | ||
---|---|---|---|---|
P NPT | L | Ø E | F Flat | |
IVI-FT-2N | 1/8 | 26.4 | 8.6 | 12.7 |
IVI-FT-4N | 1/4 | 29.7 | 11.4 | 17.46 |
IVI-FT-6N | 3/8 | 36.1 | 15.0 | 20.64 |
IVI-FT-8N | 1/2 | 39.6 | 18.5 | 25.4 |
IVI-FT-12N | 3/4 | 48.8 | 23.9 | 31.75 |
IVI-FT-16N | 1 | 48.5 | 29.7 | 42.45 |
