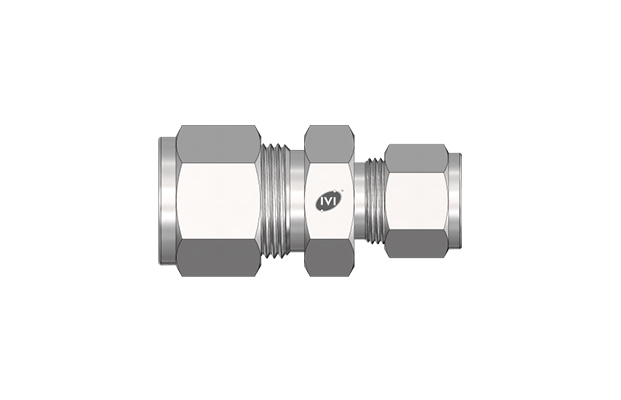

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Reducing Union
| Part Number | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| P Tube O.D. | P1 Tube O.D. | L | C | C1 | D | W HEX | |
| IVI-2T-RU-1N | 1/8 | 1/16 | 1.21 | 0.60 | .43 | 0.81 | 7/16 |
| IVI-3T-RU-1N | 3/16 | 1/16 | 1.27 | 0.64 | .43 | 0.86 | 7/16 |
| IVI-3T-RU-2N | 3/16 | 1/8 | 1.44 | 0.64 | .60 | 0.92 | 7/16 |
| IVI-4T-RU-1N | 1/4 | 1/16 | 1.38 | 0.70 | .43 | 0.91 | 1/2 |
| IVI-4T-RU-2N | 1/4 | 1/8 | 1.52 | 0.70 | .60 | 0.97 | 1/2 |
| IVI-4T-RU-3N | 1/4 | 3/16 | 1.55 | 0.70 | .64 | 1.00 | 1/2 |
| IVI-5T-RU-2N | 5/16 | 1/8 | 1.58 | 0.73 | .60 | 1.03 | 9/16 |
| IVI-5T-RU-4N | 5/16 | 1/4 | 1.67 | 0.73 | .70 | 1.08 | 9/16 |
| IVI-6T-RU-1N | 3/8 | 1/16 | 1.44 | 0.76 | .43 | 1.00 | 5/8 |
| IVI-6T-RU-2N | 3/8 | 1/8 | 1.61 | 0.76 | .60 | 1.06 | 5/8 |
| IVI-6T-RU-4N | 3/8 | 1/4 | 1.71 | 0.76 | .70 | 1.13 | 5/8 |
| IVI-6T-RU-5N | 3/8 | 5/16 | 1.75 | 0.76 | .73 | 1.16 | 5/8 |
| IVI-8T-RU-2N | 1/2 | 1/8 | 1.75 | 0.87 | .60 | 1.09 | 13/16 |
| IVI-8T-RU-4N | 1/2 | 1/4 | 1.85 | 0.87 | .70 | 1.16 | 13/16 |
| IVI-8T-RU-6N | 1/2 | 3/8 | 1.91 | 0.87 | .76 | 1.22 | 13/16 |
| IVI-10T-RU-6N | 5/8 | 3/8 | 1.94 | 0.87 | .76 | 1.25 | 15/16 |
| IVI-10T-RU-8N | 5/8 | 1/2 | 2.05 | 0.87 | .87 | 1.25 | 15/16 |
| IVI-12T-RU-4N | 3/4 | 1/4 | 1.95 | 0.87 | .76 | 1.25 | 1-1/16 |
| IVI-12T-RU-6N | 3/4 | 3/8 | 2.00 | 0.87 | .76 | 1.31 | 1-1/16 |
| IVI-12T-RU-8N | 3/4 | 1/2 | 2.11 | 0.87 | .87 | 1.31 | 1-1/16 |
| IVI-12T-RU-10N | 3/4 | 5/8 | 2.11 | 0.87 | .87 | 1.31 | 1-1/16 |
| IVI-16T-RU-8N | 1 | 1/2 | 2.39 | 1.05 | .87 | 1.50 | 1-3/8 |
| IVI-16T-RU-12N | 1 | 3/4 | 2.39 | 1.05 | .87 | 1.50 | 1-3/8 |
