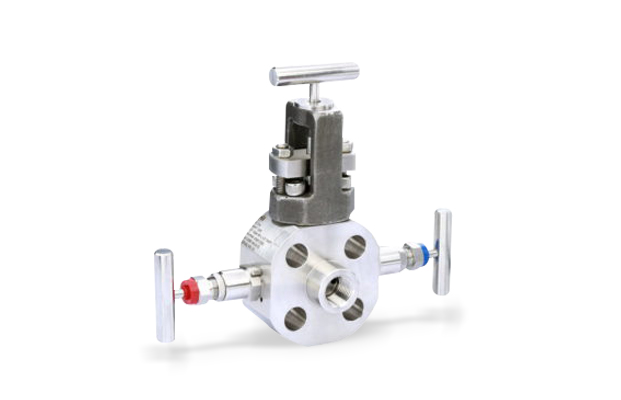

Monoflange Valves

  • Block & Bleed Valves
  • Monoflange Valves
    • Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    Monoflange Valves
    • Monoflange valves are manufactured and Designed in accordance with relevant industry standards including EEMUA 182, API 6D, ISO 17292, ASME B 16.34
    • Tested To Low Emission Standards Of The Industry such as MESC 77/312 and ISO 15848-2
    • OS & Y Type/Screwed Bonnet Needle Valves are available
    • Sizes up to 2" for a Pressure Rating of 2500# in accordance with ASME B 16.5 are available.
    • Isolate, Single Block and Bleed and Double Block and Bleed configurations are available
    • Non-Rotating Tip for consistent shut-off
    • Bleed port with ¼” Female NPT is standard
    • Standard ½” Female NPT Outlet
    • Available in SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel and Monel
