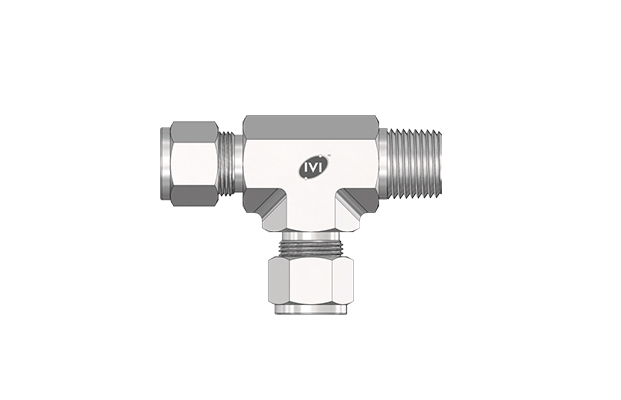

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Male Run Tee
| Part Number | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| Tube O.D. | NPT Pipe thread | A | L | S | L1 | R | W HEX | |
| IVI-2T-MRT-2N | 1/8 | 1/8 | 1.63 | 0.93 | 0.71 | 0.66 | .38 | 7/16 |
| IVI-2T-MRT-4N | 1/8 | 1/4 | 1.89 | 0.97 | 0.93 | 0.70 | .56 | 9/16 |
| IVI-3T-MRT-2N | 3/16 | 1/8 | 1.66 | 0.96 | 0.70 | 0.70 | .38 | 7/16 |
| IVI-4T-MRT-2N | 1/4 | 1/8 | 1.80 | 1.06 | 0.74 | 0.77 | .38 | 1/2 |
| IVI-4T-MRT-4N | 1/4 | 1/4 | 1.98 | 1.06 | 0.93 | 0.77 | .56 | 1/2 |
| IVI-5T-MRT-2N | 5/16 | 1/8 | 1.99 | 1.17 | 0.82 | 0.88 | .38 | 5/8 |
| IVI-5T-MRT-4N | 5/16 | 1/4 | 2.18 | 1.17 | 1.01 | 0.88 | .56 | 5/8 |
| IVI-6T-MRT-4N | 3/8 | 1/4 | 2.20 | 1.20 | 1.01 | 0.91 | .56 | 5/8 |
| IVI-6T-MRT-6N | 3/8 | 3/8 | 2.42 | 1.31 | 1.12 | 1.02 | .56 | 13/16 |
| IVI-8T-MRT-6N | 1/2 | 3/8 | 2.53 | 1.42 | 1.12 | 1.02 | .56 | 13/16 |
| IVI-8T-MRT-8N | 1/2 | 1/2 | 2.72 | 1.42 | 1.31 | 1.02 | .75 | 7/8 |
| IVI-10T-MRT-8N | 5/8 | 1/2 | 2.88 | 1.50 | 1.39 | 1.10 | .75 | 15/16 |
| IVI-12T-MRT-12N | 3/4 | 3/4 | 3.02 | 1.57 | 1.46 | 1.17 | .75 | 1-1/16 |
| IVI-14T-MRT-12N | 7/8 | 3/4 | 3.41 | 1.76 | 1.65 | 1.36 | .75 | 1-3/8 |
| IVI-16T-MRT-12N | 1 | 3/4 | 3.59 | 1.94 | 1.65 | 1.45 | .75 | 1-3/8 |
| IVI-16T-MRT-16N | 1 | 1 | 3.78 | 1.94 | 1.84 | 1.45 | .94 | 1-3/8 |
