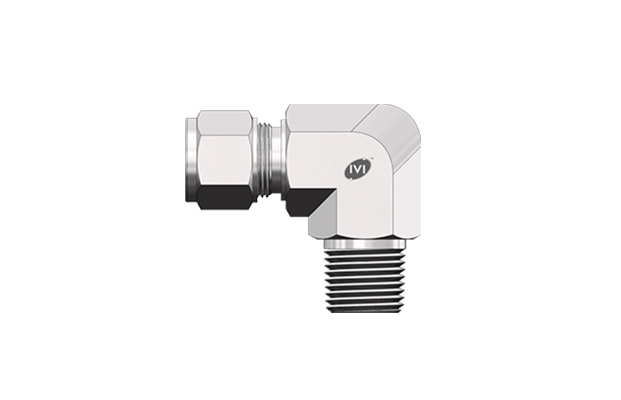

Male Elbow

  • Metric Range
  • Male Elbow
    • Male Elbow
    Male Elbow

    We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Male Elbow

    Part Number Dimensions (mm) (inch)
    Tube O.D. NPT Pipe thread L S L1 R W HEX
    IVI-3MT-ME-2N 3 1/8 23.6 17.8 17.0 9.7 7/16
    IVI-3MT-ME-4N 3 1/4 24.6 23.4 18.0 14.2 1/2
    IVI-4MT-ME-2N 4 1/8 25.4 18.8 19.2 9.7 1/2
    IVI-4MT-ME-4N 4 1/4 26.2 25.4 19.6 14.2 1/2
    IVI-6MT-ME-2N 6 1/8 27.0 18.8 19.6 9.7 1/2
    IVI-6MT-ME-4N 6 1/4 27.0 23.4 19.6 14.2 1/2
    IVI-6MT-ME-6N 6 3/8 29.8 26.2 22.4 14.2 11/16
    IVI-6MT-ME-8N 6 1/2 31.8 33.0 24.4 19.0 13/16
    IVI-8MT-ME-2N 8 1/8 28.8 19.8 21.3 9.7 9/16
    IVI-8MT-ME-4N 8 1/4 28.8 24.4 21.3 14.2 9/16
    IVI-8MT-ME-6N 8 3/8 30.6 26.2 23.1 14.2 11/16
    IVI-8MT-ME-8N 8 1/2 32.7 33.0 25.2 19.1 13/16
    IVI-10MT-ME-2N 10 1/8 31.5 21.6 23.9 9.7 11/16
    IVI-10MT-ME-4N 10 1/4 31.5 26.2 23.9 14.2 11/16
    IVI-10MT-ME-6N 10 3/8 31.5 26.2 23.9 14.2 11/16
    IVI-10MT-ME-8N 10 1/2 33.5 33.0 25.9 19.0 13/16
    IVI-12MT-ME-4N 12 1/4 36.0 28.2 25.9 14.2 13/16
    IVI-12MT-ME-6N 12 3/8 36.0 28.2 25.9 14.2 13/16
    IVI-12MT-ME-8N 12 1/2 36.0 33.0 25.9 19.0 13/16
    IVI-12MT-ME-12N 12 3/4 39.8 36.8 29.7 19.0 1-1/16
    IVI-15MT-ME-8N 15 1/2 38.0 35.1 27.9 19.0 15/16
    IVI-16MT-ME-6N 16 3/8 38.0 30.2 27.9 14.2 15/16
    IVI-16MT-ME-8N 16 1/2 38.0 35.1 27.9 19.0 15/16
    IVI-16MT-ME-12N 16 3/4 39.8 36.8 29.7 19.0 1-1/16
    IVI-18MT-ME-8N 18 1/2 39.8 36.8 29.7 19.0 1-1/16
    IVI-18MT-ME-12N 18 3/4 39.8 36.8 29.7 19.0 1-1/16
    IVI-20MT-ME-8N 20 1/2 44.6 41.7 34.5 19.0 1-3/8
    IVI-20MT-ME-12N 20 3/4 44.6 41.7 34.5 19.0 1-3/8
    IVI-22MT-ME-12N 22 3/4 44.6 41.7 34.5 19.0 1-3/8
    IVI-25MT-ME-12N 25 3/4 49.1 41.7 36.8 19.0 1-3/8
    IVI-25MT-ME-16N 25 1 49.1 46.5 36.8 23.9 1-3/8
