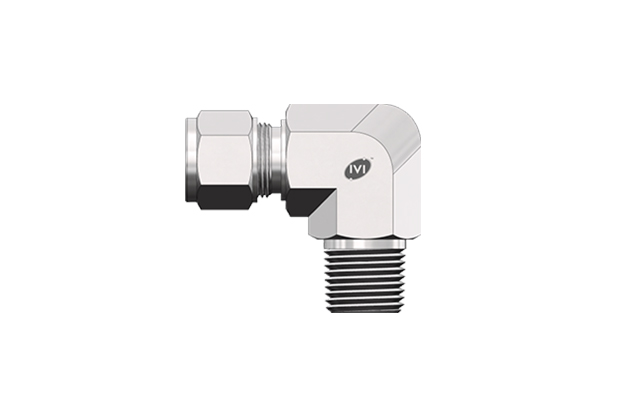

    Male Elbow Male Connector - Metric Range : ISO Tapered Thread

    We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Male Elbow Male Connector - Metric Range : ISO Tapered Thread

    Part Number Dimensions (mm) (inch)
    Tube O.D. NPT Pipe thread L S L1 R W HEX
    IVI-3MT-ME-2GT 3 1/8 23.6 17.8 17.0 9.7 7/16
    IVI-3MT-ME-4GT 3 1/4 24.6 23.4 18.0 14.2 1/2
    IVI-4MT-ME-2GT 4 1/8 25.4 18.8 18.8 9.7 1/2
    IVI-4MT-ME-4GT 4 1/4 24.6 23.4 18.8 14.2 1/2
    IVI-6MT-ME-2GT 6 1/8 27.0 18.8 19.6 9.7 1/2
    IVI-6MT-ME-4GT 6 1/4 27.0 23.4 19.6 14.2 1/2
    IVI-6MT-ME-6GT 6 3/8 29.8 26.2 22.4 14.2 11/16
    IVI-6MT-ME-8GT 6 1/2 31.8 33.0 24.4 19.0 13/16
    IVI-8MT-ME-2GT 8 1/8 28.8 19.8 21.3 9.7 9/16
    IVI-8MT-ME-4GT 8 1/4 28.8 24.4 21.3 14.2 9/16
    IVI-8MT-ME-6GT 8 3/8 30.6 26.2 23.1 14.2 11/16
    IVI-8MT-ME-8GT 8 1/2 32.7 33.0 25.2 19.1 13/16
    IVI-1OMT-ME-2GT 10 1/8 31.5 21.6 23.9 9.7 11/16
    IVI-1OMT-ME-4GT 10 1/4 31.5 26.2 23.9 14.2 11/16
    IVI-1OMT-ME-6GT 10 3/8 31.5 26.2 23.9 14.2 11/16
    IVI-10MT-ME-8GT 10 1/2 33.5 33.0 25.9 19.0 13/16
    IVI-12MT-ME-4GT 12 1/4 36.0 28.2 25.9 14.2 13/16
    IVI-12MT-ME-6GT 12 318 36 .0 28.2 25.9 14.2 13/16
    IVI-12MT-ME-8GT 12 1/2 36.0 33.0 25.9 19.0 13/16
    IVI-12MT-ME-12GT 12 3/4 39.8 36.8 29.7 19.1 1-1/16
    IVI-16MT-ME-6GT 16 3/8 38.0 30.2 27.9 14.2 15/16
    IVI-16MT-ME-8GT 16 1/2 38.0 35.1 27.9 19.0 15/16
    IVI-18MT-ME-8GT 18 1/2 39.8 36.8 29.7 19.0 1-1/16
    IVI-18MT-ME-12GT 18 3/4 39.8 36.8 29.7 19.0 1-1/16
    IVI-20MT-ME-12GT 20 3/4 44.6 41.7 34.5 19.0 1-3/8
    IVI-25MT-ME-12GT 25 3/4 49.0 41.7 36.8 19.1 1-3/8
    IVI-25MT-ME-16GT 25 1 49.1 46.5 36.8 23.9 1-3/8
