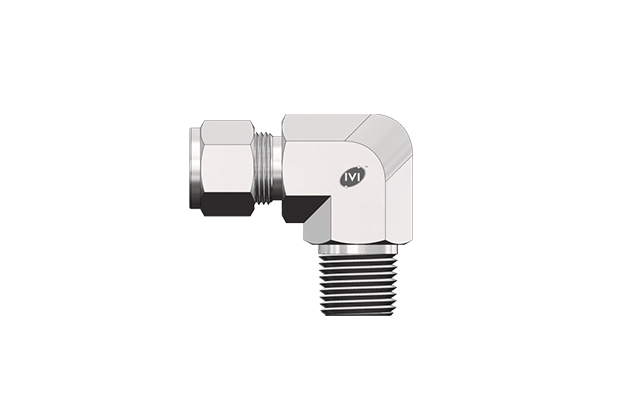

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Male Elbow-Imperial Range: ISO Tapered Thread
| Part Number | Dimensions (in) | |||||||
|---|---|---|---|---|---|---|---|---|
| Tube O.D. | NPT Pipe thread | L | S | l1 | R | W HEX | ||
| IVI-4T-ME-2GT | 1/4 | 1/8 | 1.06 | 0.75 | 0.77 | .38 | 1/2 | |
| IVI-4T-ME-4GT | 1/4 | 1/4 | 1.06 | 0.94 | 0.77 | .56 | 9/16 | |
| IVI-4T-ME-6GT | 1/4 | 3/8 | 1.17 | 1.05 | 0.88 | .56 | 11/16 | |
| IVI-4T-ME-8GT | 1/4 | 1/2 | 1.25 | 1.32 | 0.96 | .75 | 7/8 | |
| IVI-5T-ME-4GT | 5/16 | 1/4 | 1.13 | 0.98 | 0.84 | .38 | 9/16 | |
| IVI-6T-ME-4GT | 3/8 | 1/4 | 1.20 | 1.02 | 0.91 | .56 | 5/8 | |
| IVI-6T-ME-6GT | 3/8 | 3/8 | 1.23 | 1.05 | 0.97 | .56 | 11/16 | |
| IVI-8T-ME-6GT | 1/2 | 3/8 | 1.42 | 1.13 | 1.02 | .56 | 13/16 | |
| IVI-8T-ME-8GT | 1/2 | 1/2 | 1.42 | 1.32 | 1.02 | .75 | 7/8 | |
