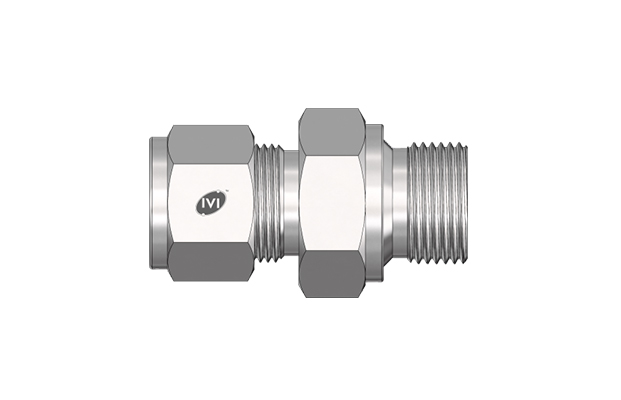

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Male Connector - ISO Parallel Thread
| Part Number | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| Tube O.D. | BSPP thread | L | C | D | R | X | W HEX | |
| IVI-2T-MC-2G | 1/8 | 1/8 | 1.18 | .60 | 0.92 | .28 | 0.54 | 9/16 |
| IVI-2T-MC-4G | 1/8 | 1/4 | 1.27 | .60 | 1.13 | .44 | 0.70 | 3/4 |
| IVI-2T-MC-6G | 1/8 | 3/8 | 1.46 | .60 | 1.17 | .44 | 0.86 | 7/8 |
| IVI-4T-MC-2G | 1/4 | 1/8 | 1.28 | .70 | 1.17 | .28 | 0.54 | 9/16 |
| IVI-4T-MC-4G | 1/4 | 1/4 | 1.49 | .70 | 1.19 | .44 | 0.70 | 3/4 |
| IVI-4T-MC-6G | 1/4 | 3/8 | 1.55 | .70 | 1.25 | .44 | 0.86 | 7/8 |
| IVI-4T-MC-8G | 1/4 | 1/2 | 1.77 | .70 | 1.47 | .56 | 1.01 | 1-1/16 |
| IVI-6T-MC-2G | 3/8 | 1/8 | 1.35 | .76 | 1.06 | .28 | 0.54 | 5/8 |
| IVI-6T-MC-4G | 3/8 | 1/4 | 1.54 | .76 | 1.25 | .44 | 0.70 | 3/4 |
| IVI-6T-MC-6G | 3/8 | 3/8 | 1.57 | .76 | 1.28 | .44 | 0.86 | 7/8 |
| IVI-6T-MC-8G | 3/8 | 1/2 | 1.82 | .76 | 1.53 | .56 | 1.01 | 1-1/16 |
| IVI-8T-MC-4G | 1/2 | 1/4 | 1.66 | .86 | 1.28 | .44 | 0.70 | 13/16 |
| IVI-8T-MC-6G | 1/2 | 3/8 | 1.69 | .86 | 1.31 | .44 | 0.86 | 7/8 |
| IVI-8T-MC-8G | 1/2 | 1/2 | 1.91 | .86 | 1.53 | .56 | 1.01 | 1-1/16 |
| IVI-12T-MC-8G | 3/4 | 1/2 | 1.93 | .86 | 1.53 | .56 | 1.01 | 1-1/16 |
| IVI-12T-MC-12G | 3/4 | 3/4 | 2.07 | .86 | 1.69 | .63 | 1.25 | 1-3/8 |
| IVI-16T-MC-8G | 1 | 1/2 | 2.21 | 1.04 | 1.72 | .56 | 1.01 | 1-3/8 |
| IVI-16T-MC-16G | 1 | 1 | 2.35 | 1.04 | 1.88 | .72 | 1.52 | 1-5/8 |
