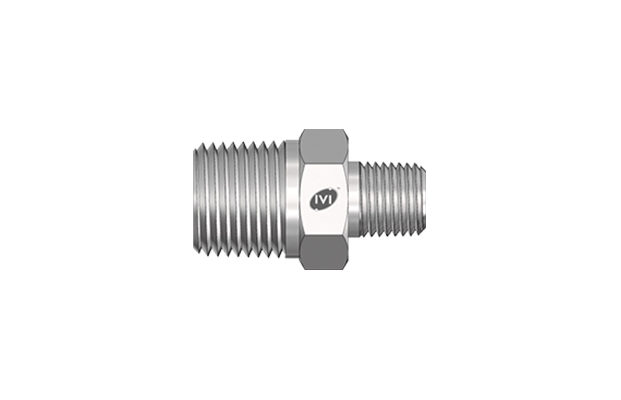

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Hex Reducing Nipples Male Npt
| Part Number | Pipe Size (in) | Dimensions (mm) | |||
|---|---|---|---|---|---|
| P NPT | P1 NPT | L | Ø E | F Flat | |
| IVI-HR N-2N-1N | 1/8 | 1/16 | 25.6 | 3.0 | 11.11 |
| IVI-HRN-4N-2N | 1/4 | 1/8 | 31.0 | 4.8 | 14.29 |
| IVI-HRN-6N-2N | 3/8 | 1/8 | 31.8 | 4.8 | 17.46 |
| IVI-HRN-6N-4N | 3/8 | 1/4 | 36.3 | 7.1 | 17.46 |
| IVI-H RN-8N-2N | 1/2 | 1/8 | 37.3 | 4.8 | 22.22 |
| IVI-HRN-8N-4N | 1/2 | 1/4 | 41.9 | 7.1 | 22.22 |
| IVI-HRN-8N-6N | 1/2 | 3/8 | 41.9 | 9.6 | 22.22 |
| IVI-HRN-12N-4N | 3/4 | 1/4 | 41.9 | 7.1 | 27.00 |
| IVI-HR N-12N-8N | 3/4 | 1/2 | 46.7 | 11.9 | 27.00 |
| IVI-HRN-16N-4N | 1 | 1/4 | 49.3 | 7.1 | 34.92 |
| IVI-HRN-16N-8N | 1 | 1/2 | 54.1 | 11.9 | 34.92 |
| IVI-HRN-16N-12N | 1 | 3/4 | 54.1 | 15.7 | 34.92 |
