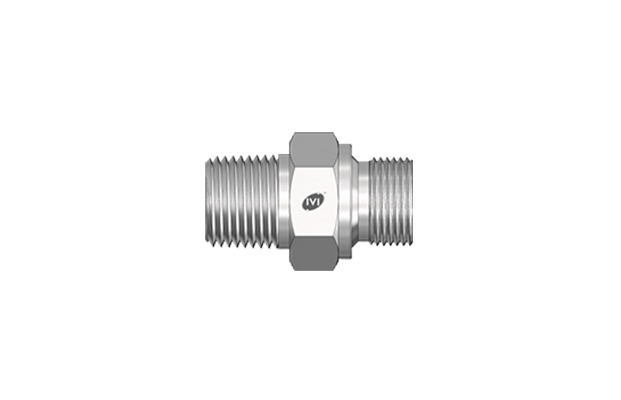

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Hex Nipples Npt To Iso Parallel Thread
| Part Number | P NPT (in) | P1 ISO Thread (in) | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|---|
| L | B | Ø C | Ø E | F Flat | |||
| IVI-HN-2N-2G | 1/8 | 1/8 | 27.7 | 8.1 | 13.7 | 4.1 | 14.29 |
| IVI-HN-4N-4G | 1/4 | 1/4 | 36.8 | 11.9 | 17.8 | 5.8 | 19.05 |
| IVI-HN-6N-6G | 3/8 | 3/8 | 37.6 | 11.9 | 21.8 | 7.9 | 22.22 |
| IVI-HN-8N-8G | 1/2 | 1/2 | 44.4 | 14.0 | 25.9 | 11.9 | 27.00 |
| IVI-HN-12N-12G | 3/4 | 3/4 | 49.0 | 16.0 | 31.8 | 15.7 | 33.92 |
| IVI-HN-16N-16G | 1 | 1 | 56.6 | 18.0 | 38.9 | 19.8 | 41.27 |
