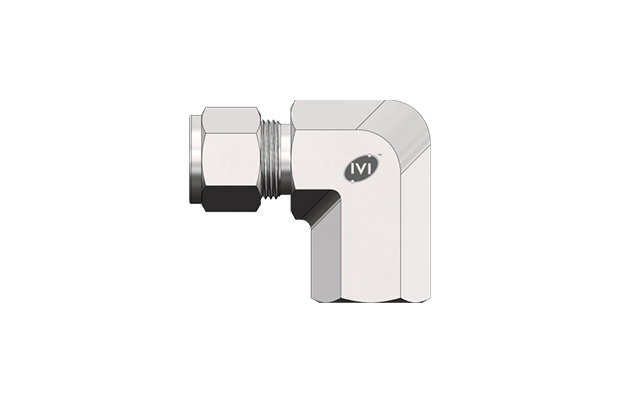

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Female Elbow
| Part Number | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Tube O.D. | NPT Pipe thread | L | S | L1 | W HEX | ||
| IVI-1T-FE-1N | 1/16 | 1/16 | 0.75 | 0.50 | 0.60 | 7/16 | |
| IVI-1T-FE-2N | 1/16 | 1/8 | 0.79 | 0.75 | 0.64 | 9/16 | |
| IVI-2T-FE-2N | 1/8 | 1/8 | 0.97 | 0.75 | 0.71 | 9/16 | |
| IVI-2T-FE-4N | 1/8 | 1/4 | 1.10 | 0.88 | 0.84 | 3/4 | |
| IVI-3T-FE-2N | 3/16 | 1/8 | 1.00 | 0.75 | 0.74 | 9/16 | |
| IVI-4T-FE-2N | 1/4 | 1/8 | 1.06 | 0.75 | 0.77 | 9/16 | |
| IVI-4T-FE-4N | 1/4 | 1/4 | 1.20 | 0.88 | 0.91 | 11/16 | |
| IVI-4T-FE-6N | 1/4 | 3/8 | 1.25 | 0.88 | 0.96 | 13/16 | |
| IVI-4T-FE-8N | 1/4 | 1/2 | 1.36 | 1.13 | 1.07 | 1 | |
| IVI-5T-FE-2N | 5/16 | 1/8 | 1.13 | 0.75 | 0.84 | 9/16 | |
| IVI-5T-FE-4N | 5/16 | 1/4 | 1.24 | 0.88 | 0.94 | 11/16 | |
| IVI-6T-FE-2N | 3/8 | 1/8 | 1.20 | 0.75 | 0.91 | 5/8 | |
| IVI-6T-FE-4N | 3/8 | 1/4 | 1.26 | 0.88 | 0.97 | 11/16 | |
| IVI-6T-FE-6N | 3/8 | 3/8 | 1.31 | 0.88 | 1.02 | 13/16 | |
| IVI-6T-FE-8N | 3/8 | 1/2 | 1.42 | 1.13 | 1.13 | 1 | |
| IVI-8T-FE-4N | 1/2 | 1/4 | 1.42 | 0.88 | 1.02 | 13/16 | |
| IVI-8T-FE-6N | 1/2 | 3/8 | 1.42 | 0.88 | 1.02 | 13/16 | |
| IVI-8T-FE-8N | 1/2 | 1/2 | 1.53 | 1.13 | 1.13 | 1 | |
| IVI-10T-FE-6N | 5/8 | 3/8 | 1.50 | 0.88 | 1.10 | 15/16 | |
| IVI-10T-FE-8N | 5/8 | 1/2 | 1.57 | 1.13 | 1.17 | 1-1/16 | |
| IVI-12T-FE-8N | 3/4 | 1/2 | 1.57 | 1.13 | 1.17 | 1-1/16 | |
| IVI-12T-FE-12N | 3/4 | 3/4 | 1.76 | 1.25 | 1.36 | 1-3/8 | |
| IVI-14T-FE-12N | 7/8 | 3/4 | 1.76 | 1.25 | 1.36 | 1-3/8 | |
| IVI-16T-FE-12N | 1 | 3/4 | 1.93 | 1.25 | 1.45 | 1-3/8 | |
| IVI-16T-FE-16N | 1 | 1 | 2.02 | 1.50 | 1.53 | 1-5/8 | |
