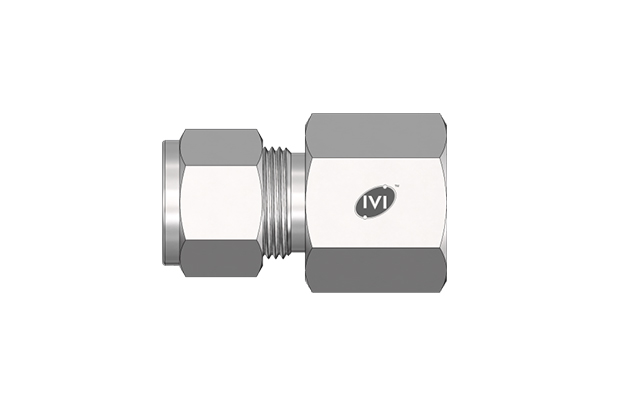

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Female Connector
| Part Number | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|
| Tube O.D. | NPT Pipe thread | L | C | D | W HEX | |
| IVI-1T-FC-1N | 1/16 | 1/16 | 0.93 | 0.43 | 0.78 | 7/16 |
| IVI-1T-FC-2N | 1/16 | 1/8 | 0.95 | 0.43 | 0.81 | 9/16 |
| IVI-2T-FC-2N | 1/8 | 1/8 | 1.14 | 0.60 | 0.88 | 9/16 |
| IVI-2T-FC-4N | 1/8 | 1/4 | 1.32 | 0.60 | 1.06 | 3/4 |
| IVI-3T-FC-2N | 3/16 | 1/8 | 1.17 | 0.64 | 0.91 | 9/16 |
| IVI-3T-FC-4N | 3/16 | 1/4 | 1.35 | 0.64 | 1.09 | 3/4 |
| IVI-4T-FC-2N | 1/4 | 1/8 | 1.23 | 0.70 | 0.94 | 9/16 |
| IVI-4T-FC-4N | 1/4 | 1/4 | 1.42 | 0.70 | 1.13 | 3/4 |
| IVI-4T-FC-6N | 1/4 | 3/8 | 1.48 | 0.70 | 1.19 | 7/8 |
| IVI-4T-FC-8N | 1/4 | 1/2 | 1.67 | 0.70 | 1.38 | 1-1/16 |
| IVI-5T-FC-2N | 5/16 | 1/8 | 1.27 | 0.73 | 0.97 | 9/16 |
| IVI-5T-FC-4N | 5/16 | 1/4 | 1.46 | 0.73 | 1.16 | 3/4 |
| IVI-5T-FC-6N | 5/16 | 3/8 | 1.51 | 0.73 | 1.22 | 7/8 |
| IVI-6T-FC-2N | 3/8 | 1/8 | 1.29 | 0.76 | 1.00 | 5/8 |
| IVI-6T-FC-4N | 3/8 | 1/4 | 1.48 | 0.76 | 1.19 | 3/4 |
| IVI-6T-FC-6N | 3/8 | 3/8 | 1.54 | 0.76 | 1.25 | 7/8 |
| IVI-6T-FC-8N | 3/8 | 1/2 | 1.73 | 0.76 | 1.44 | 1-1/16 |
| IVI-6T-FC-12N | 3/8 | 3/4 | 1.85 | 0.76 | 1.56 | 1-1/4 |
| IVI-8T-FC-4N | 1/2 | 1/4 | 1.59 | 0.87 | 1.19 | 13/16 |
| IVI-8T-FC-6N | 1/2 | 3/8 | 1.65 | 0.87 | 1.25 | 7/8 |
| IVI-8T-FC-8N | 1/2 | 1/2 | 1.84 | 0.87 | 1.44 | 1-1/16 |
| IVI-8T-FC-12N | 1/2 | 3/4 | 1.96 | 0.87 | 1.56 | 1-1/4 |
| IVI-10T-FC-6N | 5/8 | 3/8 | 1.65 | 0.87 | 1.25 | 15/16 |
| IVI-10T-FC-8N | 5/8 | 1/2 | 1.84 | 0.87 | 1.44 | 1-1/16 |
| IVI-10T-FC-12N | 5/8 | 3/4 | 1.96 | 0.87 | 1.56 | 1-3/8 |
| IVI-12T-FC-8N | 3/4 | 1/2 | 1.84 | 0.87 | 1.44 | 1-1/16 |
| IVI-12T-FC-12N | 3/4 | 3/4 | 1.96 | 0.87 | 1.56 | 1-3/8 |
| IVI-14T-FC-12N | 7/8 | 3/4 | 1.96 | 0.87 | 1.56 | 1-3/8 |
| IVI-16T-FC-12N | 1 | 3/4 | 2.15 | 1.05 | 1.66 | 1-3/8 |
| IVI-16T-FC-16N | 1 | 1 | 2.46 | 1.05 | 1.97 | 1-5/8 |
