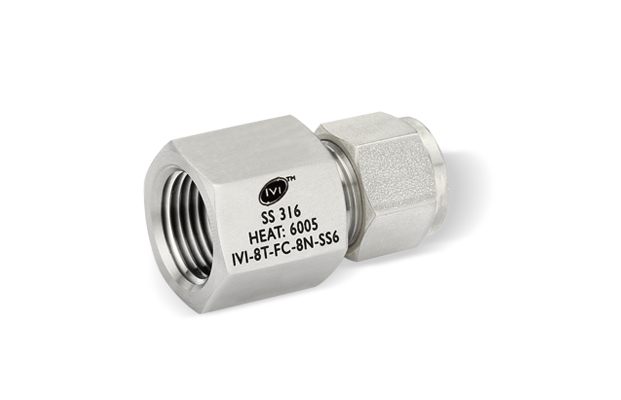

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Female Connector- Metric Range : NPT Thread
| Part Number | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|
| Tube O.D. | NPT thread | L | C | D | W HEX | |
| IVI-3MT-FC-2N | 3 | 1/8 | 28.8 | 15.3 | 22.2 | 14.0 |
| IVI-3MT-FC-4N | 3 | 1/4 | 33.6 | 15.3 | 27.0 | 19.0 |
| IVI-4MT-FC-2N | 4 | 1/8 | 29.6 | 16.1 | 23.0 | 14.0 |
| IVI-6MT-FC-2N | 6 | 1/8 | 31.3 | 17.7 | 23.8 | 14.0 |
| IVI-6MT-FC-4N | 6 | 1/4 | 36.1 | 17.7 | 28.6 | 19.0 |
| IVI-6MT-FC-6N | 6 | 3/8 | 37.7 | 17.7 | 30.2 | 22.0 |
| IVI-6MT-FC-8N | 6 | 1/2 | 42.5 | 17.7 | 35.0 | 27.0 |
| IVI-8MT-FC-2N | 8 | 1/8 | 32.1 | 18.6 | 24.6 | 14.0 |
| IVI-8MT-FC-4N | 8 | 1/4 | 36.9 | 18.6 | 29.4 | 19.0 |
| IVI-8MT-FC-6N | 8 | 3/8 | 38.5 | 18.6 | 31.0 | 22.0 |
| IVI-10MT-FC-4N | 10 | 1/4 | 37.8 | 19.5 | 30.2 | 19.0 |
| IVI-10MT-FC-6N | 10 | 3/8 | 39.4 | 19.5 | 31.8 | 22.0 |
| IVI-1OMT-FC-8N | 10 | 1/2 | 44.1 | 19.5 | 36.5 | 27.0 |
| IVI-12MT-FC-4N | 12 | 1/4 | 41.9 | 22.0 | 31.8 | 22.0 |
| IVI-12MT-FC-6N | 12 | 3/8 | 41.9 | 22.0 | 31.8 | 22.0 |
| IVI-12MT-FC-8N | 12 | 1/2 | 46.6 | 22.0 | 36.5 | 27.0 |
| IVI-16MT-FC-6N | 16 | 3/8 | 41.9 | 22.0 | 31.8 | 27.0 |
| IVI-16MT-FC-8N | 16 | 1/2 | 46.9 | 22.0 | 36.5 | 27.0 |
| IVI-20MT-FC-8N | 20 | 1/2 | 47.9 | 22.0 | 37.8 | 30.0 |
| IVI-20MT-FC-12N | 20 | 3/4 | 49.7 | 22.0 | 39.6 | 35.0 |
| IVI-22MT-FC-12N | 22 | 3/4 | 49.7 | 22.0 | 39.6 | 35.0 |
| IVI-25MT-FC-12N | 25 | 3/4 | 53.6 | 26.5 | 41.3 | 35.0 |
| IVI-25MT-FC-1 6N | 25 | 1 | 62.3 | 26.5 | 50.0 | 41.0 |
