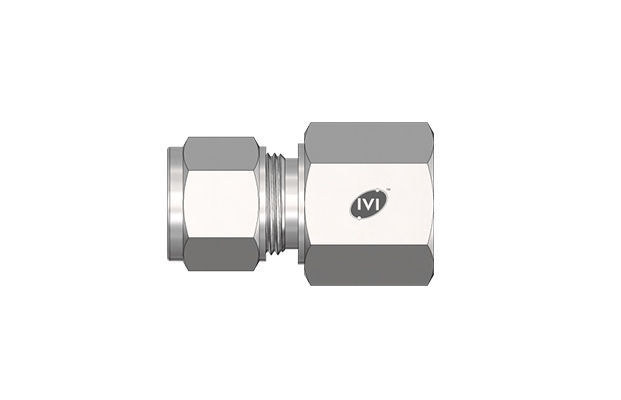

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Female Connector - Imperial Range : ISO Tapered Thread
| Part Number | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|
| Tube O.D. | BSPT thread | L | C | D | W HEX | |
| IVI-3MT-FC-2GT | 3 | 1/8 | 29,2 | 15,3 | 22,6 | 14,0 |
| IVI-6MT-FC-2GT | 6 | 1/8 | 31,3 | 17,7 | 23,8 | 14,0 |
| IVI-6MT-FC-4GT | 6 | 1/4 | 35,8 | 17.7 | 28,3 | 19,0 |
| IVI-6MT-FC-6GT | 6 | 3/8 | 37,6 | 17.7 | 30,1 | 22,0 |
| IVI-6MT-FC-8GT | 6 | 1/2 | 42,5 | 17,7 | 35,0 | 27,0 |
| IVI-8MT-FC-2GT | 8 | 1/8 | 32,8 | 18,6 | 25,3 | 15,0 |
| IVI-8MT-FC-4GT | 8 | 1/4 | 37,0 | 18,6 | 29,5 | 19,0 |
| IVI-8MT-FC-6GT | 8 | 3/8 | 38,5 | 18,6 | 31,0 | 22,0 |
| IVI-8MT-FC-8GT | 8 | 1/2 | 43,3 | 18,6 | 35,8 | 27,0 |
| IVI-1OMT-FC-2GT | 10 | 1/8 | 44,2 | 19,5 | 36,6 | 19,0 |
| IVI-10MT-FC-4GT | 10 | 1/4 | 33,0 | 19,5 | 25,4 | 19,0 |
| IVI-10MT-FC-6GT | 10 | 3/8 | 37,8 | 19,5 | 30,2 | 22,0 |
| IVI-1OMT-FC-8GT | 10 | 1/2 | 39,4 | 19,5 | 31,8 | 27,0 |
| IVI-12MT-FC-4GT | 12 | 1/4 | 40,3 | 22,0 | 30,2 | 22,0 |
| IVI-12MT-FC-6GT | 12 | 3/8 | 41,9 | 22,0 | 31,8 | 22,0 |
| IVI-12MT-FC-8GT | 12 | 1/2 | 46.7 | 22,0 | 36,6 | 27,0 |
| IVI-16MT-FC-8GT | 16 | 1/2 | 48,4 | 22,0 | 38,3 | 18,0 |
| IVI-20MT-FC-8GT | 20 | 1/2 | 54.7 | 22,0 | 44,6 | 30,0 |
| IVI-20MT-FC-12GT | 20 | 3/4 | 49,7 | 22,0 | 39,6 | 35,0 |
| IVI-22MT-FC-16GT | 22 | 1 | 57,9 | 22,0 | 47,8 | 41,0 |
| IVI-25MT-FC-12GT | 25 | 3/4 | 54,3 | 26,5 | 42,1 | 35,0 |
| IVI-25MT-FC-16GT | 25 | 1 | 61,5 | 26,5 | 49,3 | 41,0 |
