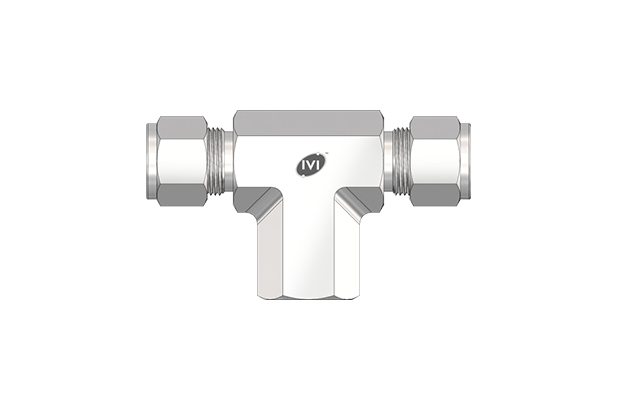

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Female Branch Tee
| Part Number | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Tube O.D. | NPT Pipe thread | A | L | S | L1 | W HEX | |
| IVI-2T-FBT-2N | 1/8 | 1/8 | 1.91 | 1.01 | 0.75 | 0.70 | 1/2 |
| IVI-3T-FBT-2N | 3/16 | 1/8 | 2.02 | 1.01 | 0.75 | 0.74 | 1/2 |
| IVI-4T-FBT-2N | 1/4 | 1/8 | 2.12 | 1.06 | 0.75 | 0.77 | 1/2 |
| IVI-4T-FBT-4N | 1/4 | 1/4 | 2.34 | 1.17 | 0.88 | 0.88 | 11/16 |
| IVI-5T-FBT-2N | 5/16 | 1/8 | 2.34 | 1.17 | 0.75 | 0.88 | 5/8 |
| IVI-6T-FBT-4N | 3/8 | 1/4 | 2.46 | 1.23 | 0.88 | 0.94 | 11/16 |
| IVI-8T-FBT-4N | 1/2 | 1/4 | 2.84 | 1.42 | 0.88 | 1.02 | 13/16 |
| IVI-8T-FBT-6N | 1/2 | 3/8 | 2.84 | 1.42 | 0.88 | 1.02 | 7/8 |
| IVI-8T-FBT-8N | 1/2 | 1/2 | 3.06 | 1.53 | 1.13 | 1.13 | 1 |
| IVI-10T-FBT-8N | 5/8 | 1/2 | 3.06 | 1.53 | 1.13 | 1.13 | 1 |
| IVI-12T-FBT-12N | 3/4 | 3/4 | 3.52 | 1.76 | 1.25 | 1.36 | 1-3/8 |
| IVI-14T-FBT-12N | 7/8 | 3/4 | 3.52 | 1.76 | 1.25 | 1.36 | 1-3/8 |
| IVI-16T-FBT-12N | 1 | 3/4 | 3.86 | 1.94 | 1.25 | 1.45 | 1-3/8 |
| IVI-16T-FBT-16N | 1 | 1 | 4.28 | 2.14 | 1.50 | 1.65 | 1-3/8 |
