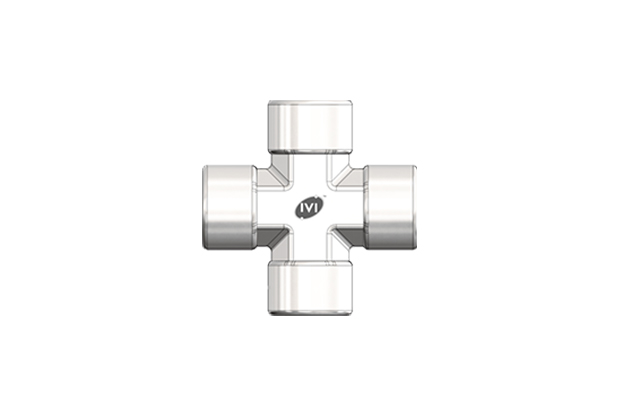

Crosses Female Npt

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Crosses Female Npt

Part Number Pipe Size (in) Dimensions (mm)
P NPT Ø E L F Flat
IVI-CS-2N 1/8 8.6 26.4 12.7
IVI-CS-4N 1/4 11.4 29.7 17.46
IVI-CS-6N 3/8 15.0 36.1 20.64
IVI-CS-8N 1/2 18.5 39.6 25.4
IVI-CS-12N 3/4 23.9 48.8 31.75
IVI-CS-16N 1 29.7 48.5 44.45
