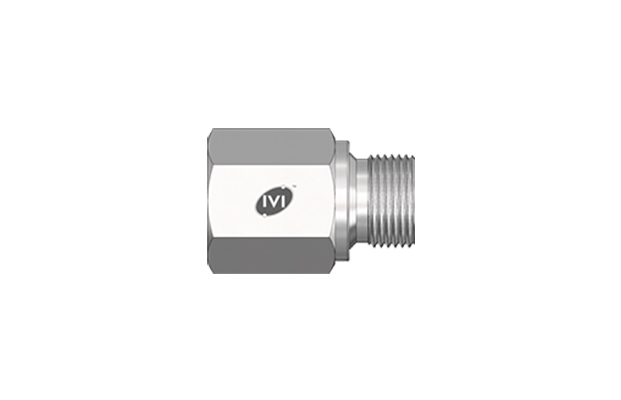

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Adapters Female Npt To Male Iso Parallel Thread
| Part Number | Pipe & ISO Thread Size (in) | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|---|
| P NPT | P1 ISO | L | B | Ø C | Ø E | F Flat | |
| IVI-A-2N-2G | 1/8 | 1/8 | 25.1 | 8.1 | 13.7 | 4.1 | 14.29 |
| IVI-A-4N-4G | 1/4 | 1/4 | 33.5 | 11.9 | 17.8 | 5.8 | 19.05 |
| IVI-A-6N-6G | 3/8 | 3/8 | 35.8 | 11.9 | 21.8 | 7.9 | 22.22 |
| IVI-A-8N-8G | 1/2 | 1/2 | 44.2 | 14.0 | 25.9 | 11.9 | 27.00 |
| IVI-A-12N-12G | 3/4 | 3/4 | 48.0 | 16.0 | 31.8 | 15.7 | 34.92 |
| IVI-A-16N-16G | 1 | 1 | 53.3 | 18.0 | 38.9 | 19.8 | 41.27 |
