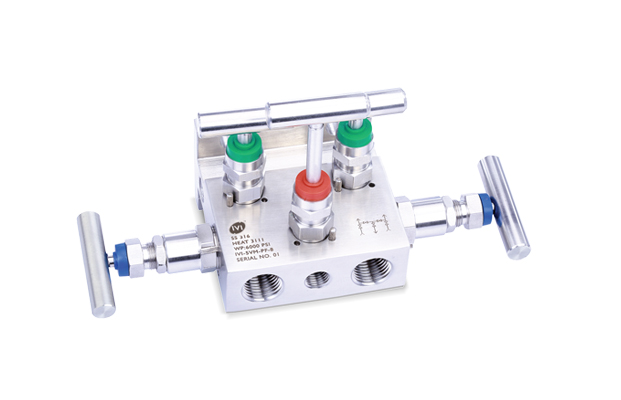

Designed for connections of impulse lines & transmitters.
1/2" Female NPT connections provided at a center distance of 54mm ( 2 1/8")
Connections Include : Two Block, Two Equalizer And One Bleed Valve With Two Vent Connections Or Two Block, Two Bleed And One Equalizer Valve Connections
Standard Working Pressure 6000 PSI with PTFE packing. Grafoil offered for higher temperatures.
Heat Code traceability.
NACE MR-0- 175 Compliant materials available on request.
All Components are Ultrasonically cleaned prior to assembly.
Pneumatic seat test is performed at 1000 PSI with Nitrogen gas.
Hydrostatic shell test is performed at 1.5 times the working pressure
All the Valves are 100% Factory Tested.
3.1 Certificates furnished. 3.2 certificates available on request.
Mounting Brackets along with accessories available on request.
Available in SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel and Monel
