45 Degrees Elbow

  • Imperial Range
  • 45 Degrees Elbow
    • 45 Degrees Elbow

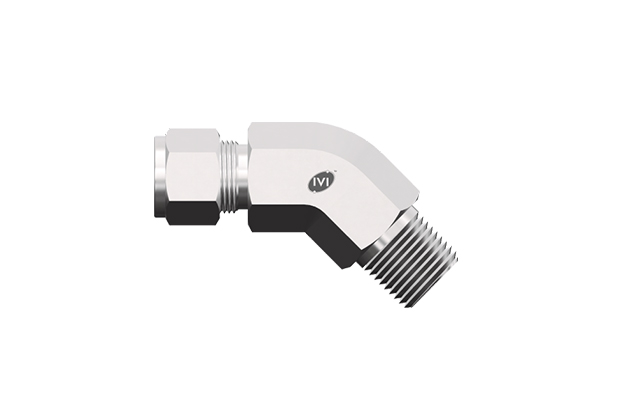

    45 Degrees Elbow

    We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of 45 Degrees Elbow

    Part Number Dimensions (mm)
    Tube O.D. NPT Pipe thread C L S R W HEX
    IVI-1T-ME45-1N 1/16 1/16 0.43 0.47 0.57 .38 7/16
    IVI-2T-ME45-2N 1/8 1/8 0.60 0.53 0.57 .38 7/16
    IVI-3T-ME45-2N 3/16 1/8 0.64 0.56 0.58 .38 7/16
    IVI-4T-ME45-2N 1/4 1/8 0.70 0.66 0.66 .38 9/16
    IVI-4T-ME45-4N 1/4 1/4 0.70 0.66 0.86 .56 9/16
    IVI-5T-ME45-2N 5/16 1/8 0.73 0.66 0.66 .38 9/16
    IVI-6T-ME45-2N 3/8 1/8 0.76 0.72 0.67 .38 9/16
    IVI-6T-ME45-4N 3/8 1/4 0.76 0.72 0.86 .56 9/16
    IVI-6T-ME45-6N 3/8 3/8 0.76 0.75 0.95 .56 3/4
    IVI-8T-ME45-6N 1/2 3/8 0.87 0.75 0.95 .56 3/4
    IVI-10T-ME45-8N 5/8 1/2 0.87 0.84 1.20 .75 1-1/16
    IVI-12T-ME45-12N 3/4 3/4 0.87 0.84 1.20 .75 1-1/16
    IVI-14T-ME45-12N 7/8 3/4 0.87 1.36 1.27 .75 1-5/16
    IVI-16T-ME45-16N 1 1 1.05 1.19 1.14 .94 1-5/16
