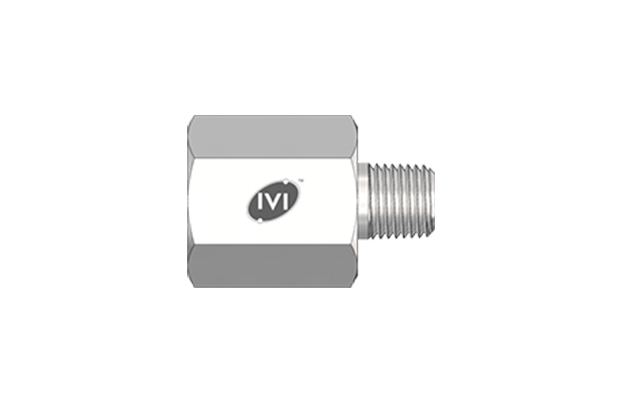

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of 10k Threaded Fittings Reducing Adapter – Female To Male Npt
| Part Number | Pipe Size (in) | Dimensions (mm) | ||
|---|---|---|---|---|
| P NPT | P1 NPT | L | F Flat | |
| IVI-RA-4N-2N-1OK | 1/4 | 1/8 | 32.2 | 25.4 |
| IVI-RA-6N-4N-1OK | 3/8 | 1/4 | 38.5 | 31.75 |
| IVI-RA-8N-4N-1OK | 1/2 | 1/4 | 46.4 | 38.1 |
| IVI-RA-12N-4N-1OK | 3/4 | 1/4 | 47.2 | 44.45 |
| IVI-RA-8N-6N-1OK | 1/2 | 3/8 | 46 | 38.1 |
| IVI-RA-12N-6N-1OK | 3/4 | 3/8 | 47.2 | 44.45 |
| IVI-RA-16N-6N-1OK | 1 | 3/8 | 49.0 | 55.0 |
| IVI-RA-12N-4N-1OK | 3/4 | 1/2 | 52.1 | 44.45 |
| IVI-RA-16N-8N-1OK | 1 | 1/2 | 53.9 | 55.0 |
| IVI-RA-16N-12N-1OK | 1 | 3/4 | 53.9 | 55.0 |
